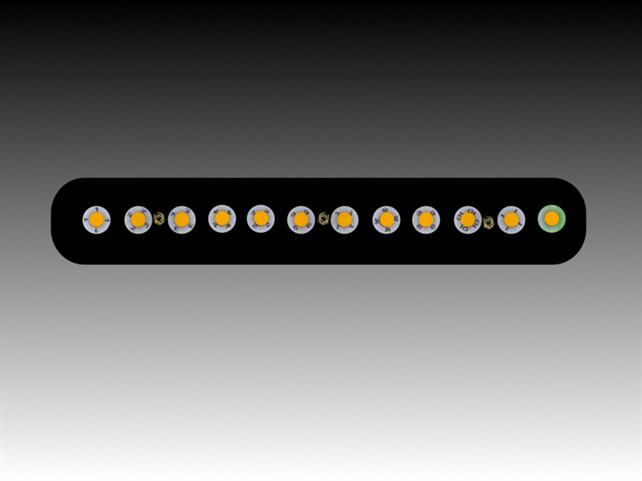

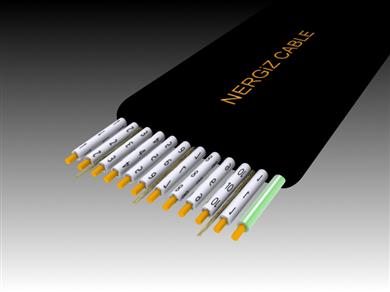

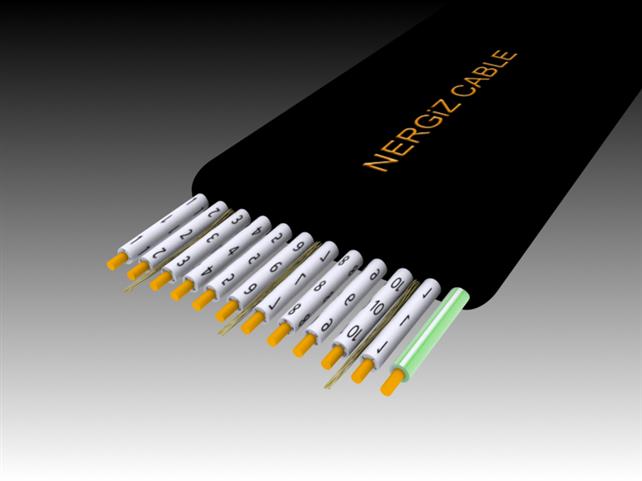

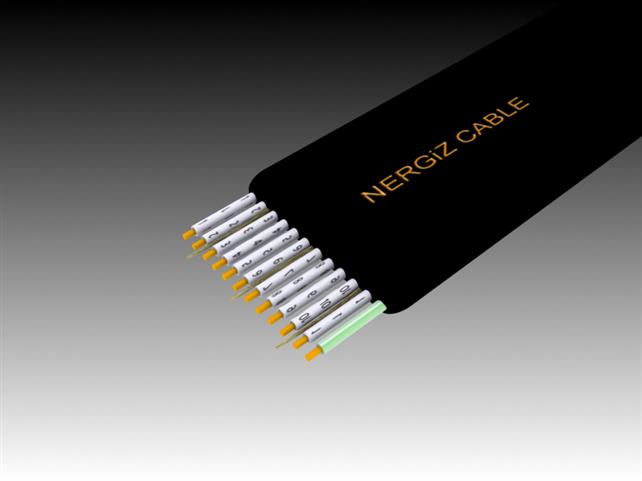

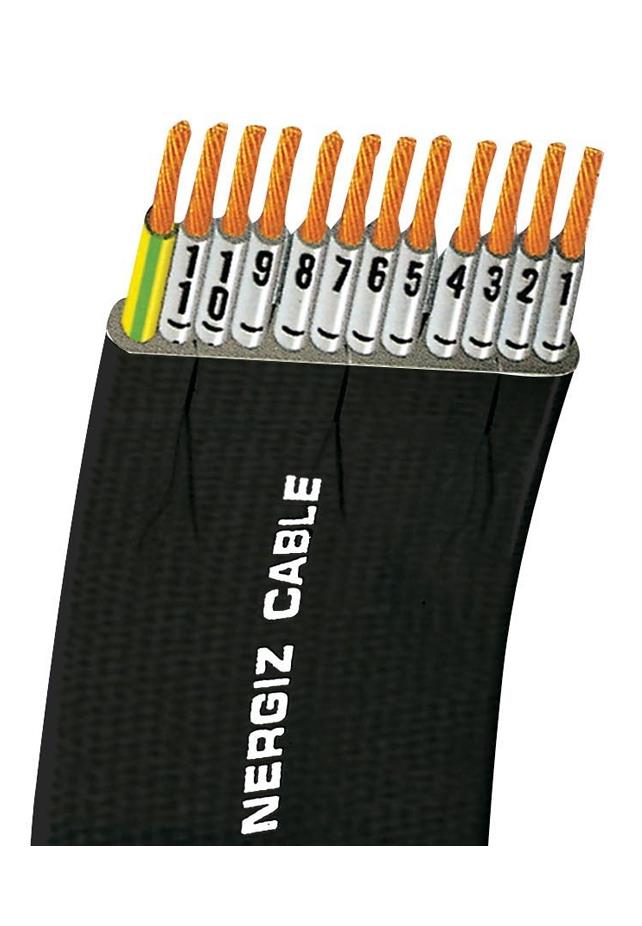

Flexible flat cable used for control connections for the elevator. Flexible flat cable used for the projects which not exceed 1.6 m/s travel speed and 35 meter free hanging length with -40 - 0 C and 60 - 0 C environment temperature.
Although it may be used for short distances, steel core supported cable with 24 conductor can be also used until 35 meter free hanging length projects.
|
Dimensions |
|
Nominal Cross-Section |
Width (mm) |
Height (mm) |
Weight (gr/m) |
|
6x0.75 |
19 |
4.2 |
142 |
|
12x0.75 |
33.8 |
4.2 |
284 |
|
16x0.75 |
44.4 |
4.2 |
366 |
|
18x0.75 |
50.5 |
4.2 |
415 |
|
20x0.75 |
55 |
4.2 |
463 |
|
24x0.75 |
65.6 |
4.2 |
550 |
|
24x0.75 * |
70.4 |
4.2 |
642 |
|
12x1 |
36.2 |
4.4 |
330 |
|
16x1 |
47.6 |
4.4 |
445 |
|
20x1 |
59 |
4.4 |
545 |
|
24x1 |
70.4 |
4.4 |
620 |
|
24x1 * |
75.6 |
4.4 |
740 |
This cable is produced in accordance to TS EN 50214.
Flexible Flat Cable H05VVH6-F Features
|
Insulation Type |
Conductor PVC/D |
|
Outer Sheath |
PVC / STS |
|
Rated Voltage |
300/500 V Cross Section 0.75 mm² - 450/750 V Cross Section 1 mm² |
|
Fire Conditions |
IEC 332-1 |
|
Test Voltage |
1500 V for U/U 300/500 V - 2500 V for U/U 450/750 V |
|
Identification |
Identification by Numbers |
|
Short Circuit Temperature |
160 °C |
|
Bending Radius |
10 x Overall Diameter |
|
Resistance against water |
IEC 811-1 |
|
Service Temperature |
70 °C |
|
Normalized |
IEC 502 |
|
Flexible Conductor |
Class 5 IEC 228 |
|
Ground Conductor |
IEC 502 |
According to customer’s request, all kinds of flat flexible cable are produced as halogen free (flame retardant low smoke emission) instead of PVC.
